Falcon Dor-o-matic 1692NL 36" Concealed Vertical Rod Exit Device


Out of Stock

Multiple Options Available

Brand Falcon

This product is unavailable

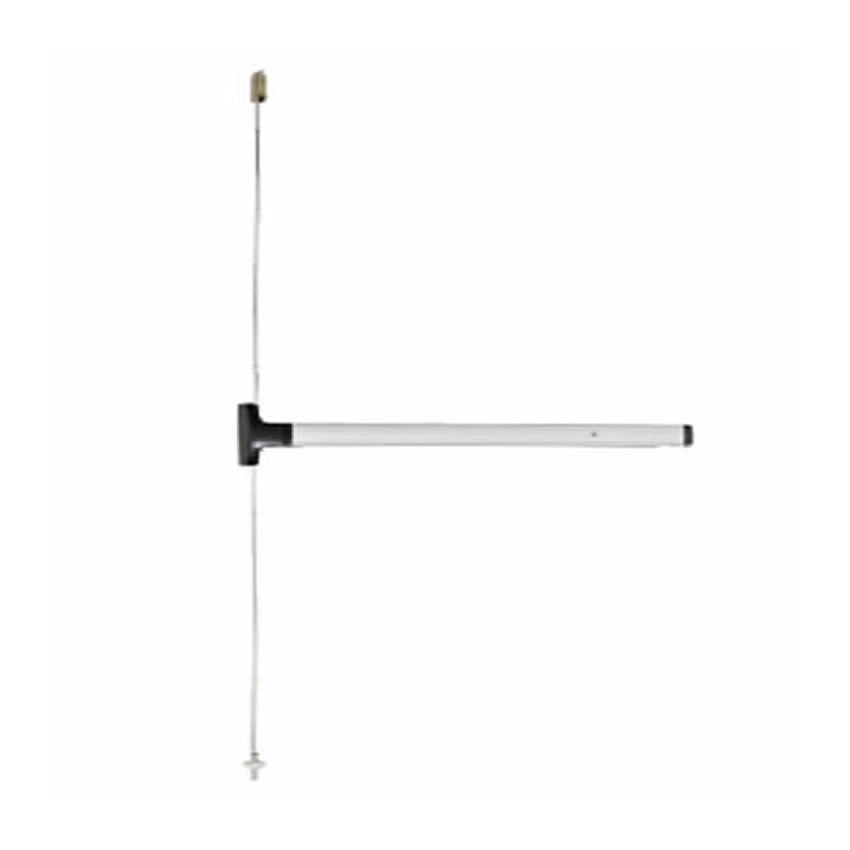

Falcon/Dor-o-matic 1692NL 36" Concealed Vertical Rod Exit Device
  • For Narrow Stile Doors
  • For use on narrow stile aluminum storefront doors
  • Minimum door width 30"
  • Non Handed
  • Minimum stile width 1 3/4"
  • Includes outside Rim cylinder, keyed different with 2 keys
  • Can be used without outside cylinder for Exit Only applications
  • The 1690 may also be used to retrofit a 1990 series crossbar device.

The design of the 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 may also be used to retrofit a 1990 Series crossbar device.


  • Hand: Field reversible, non-handed

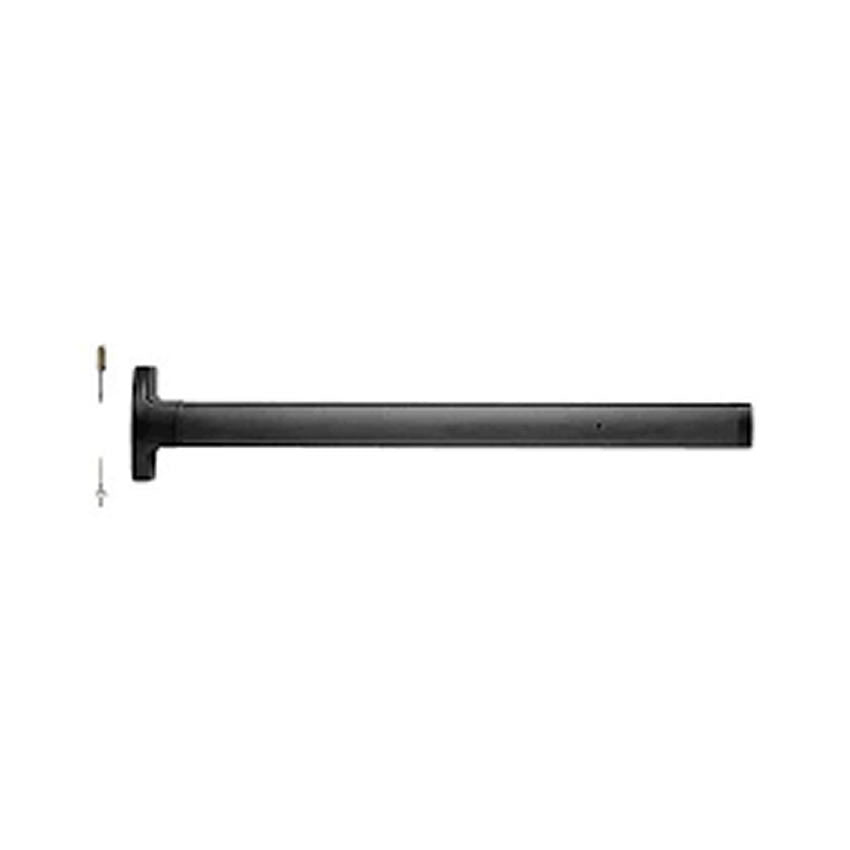

  • Finishes: US28 & DC13
  • Strikes: PB48 top
  • Latches: Hex bottom latch (standard)
  • Dogging Feature: Hex key dogging standard
  • Cylinder: Rim, key entry (NL)
  • Sizes: 36"
  • Doors: 1 3/4" thick metal doors
  • Projections: 3 3/8" in neutral position, 2 3/8" in dogged position. Pushbar height is 2 1/2.
  • Stile: 1 3/4" minimum
  • Fasteners: All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
  • End Caps: Black powder-coated metal end caps
  • Vertical Rods: 7' standard, extension rods available up to 10'. Rod extension kits available.
  • ANSI: Certified ANSI A156.3 Grade 1 standards


pdfInstall Instructions
